RISC-V RV32I仕様メモ

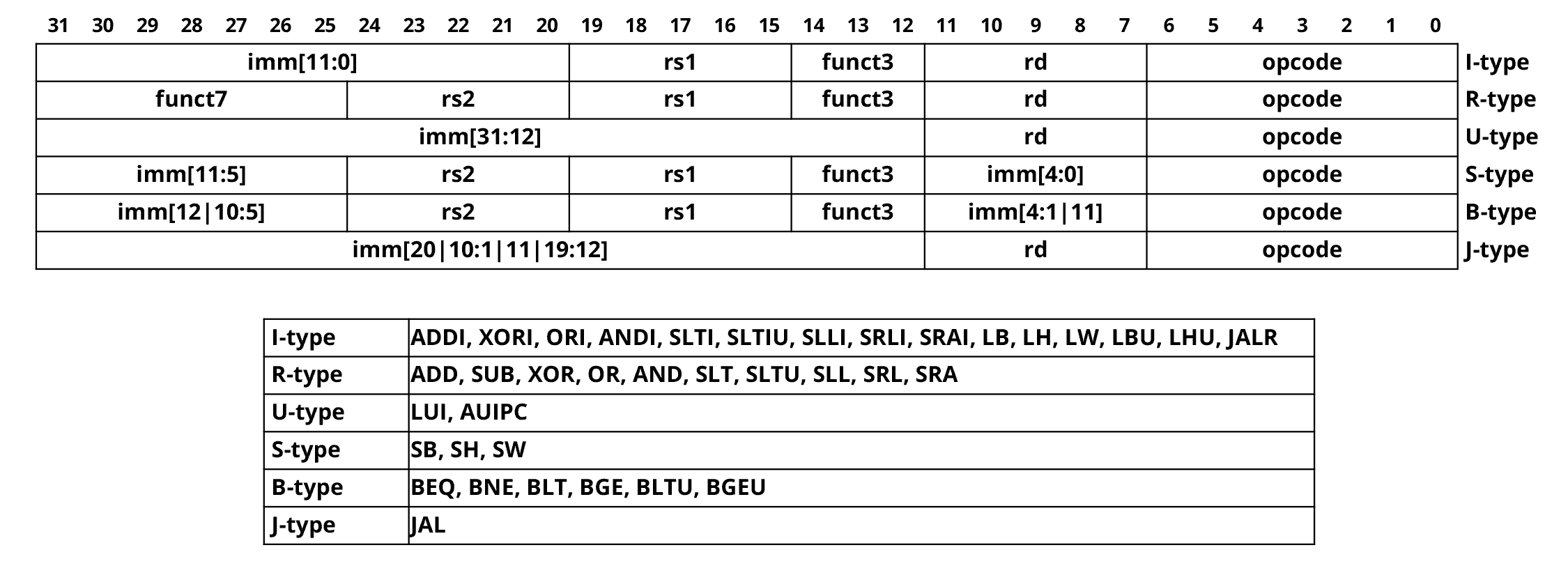

RV32I命令フォーマット。

• 以下でrdやrs1、rs2はそれぞれに格納された値 (参考ソースにおけるrd_val、rs1_val、rs2_valなど) のこと

命令	opcode[6:0]	演算内容	分岐先アドレス
ADDI	0010011	rd = rs1 + imm	×
XORI	0010011	rd = rs1 ^ imm	×
ORI	0010011	rd = rs1 | imm	×
ANDI	0010011	rd = rs1 & imm	×
ADD	0110011	rd = rs1 + rs2	×
SUB	0110011	rd = rs1 - rs2	×
XOR	0110011	rd = rs1 ^ rs2	×
OR	0110011	rd = rs1 | rs2	×
AND	0110011	rd = rs1 & rs2	×
SLTI	0010011	rd = (signed)rs1 < imm	×
SLTIU	0010011	rd = rs1 < imm (unsigned)	×
SLT	0110011	rd = (signed)rs1 < (signed)rs2	×
SLTU	0110011	rd = rs1 < rs2 (unsigned)	×
SLLI	0010011	rd = rs1 << imm[4:0]	×
SRLI	0010011	rd = rs1 >> imm[4:0]	×
SRAI	0010011	rd = (signed)rs1 >>> imm[4:0]	×
SLL	0110011	rd = rs1 << rs2[4:0]	×
SRL	0110011	rd = rs1 >> rs2[4:0]	×
SRA	0110011	rd = (signed)rs1 >>> rs2[4:0]	×
LUI	0110111	rd = imm	×
AUIPC	0010111	rd = pc + imm	×
LB	0000011	rd = Mem[rs1 + imm] (byte)	×
LH	0000011	rd = Mem[rs1 + imm] (half)	×
LW	0000011	rd = Mem[rs1 + imm] (word)	×
LBU	0000011	rd = Mem[rs1 + imm] (byte, unsigned)	×
LHU	0000011	rd = Mem[rs1 + imm] (half, unsigned)	×
SB	0100011	Mem[rs1 + imm] = rs2 (byte)	×
SH	0100011	Mem[rs1 + imm] = rs2 (half)	×
SW	0100011	Mem[rs1 + imm] = rs2 (word)	×
BEQ	1100011	if (rs1 == rs2) branch	pc + imm
BNE	1100011	if (rs1 != rs2) branch	pc + imm
BLT	1100011	if (rs1 < rs2) (signed) branch	pc + imm
BGE	1100011	if (rs1 >= rs2) (signed) branch	pc + imm
BLTU	1100011	if (rs1 < rs2) (unsigned) branch	pc + imm
BGEU	1100011	if (rs1 >= rs2) (unsigned) branch	pc + imm
JAL	1101111	rd = pc + 4; jump	pc + imm
JALR	1100111	rd = pc + 4; jump	(rs1 + imm) & ~1
